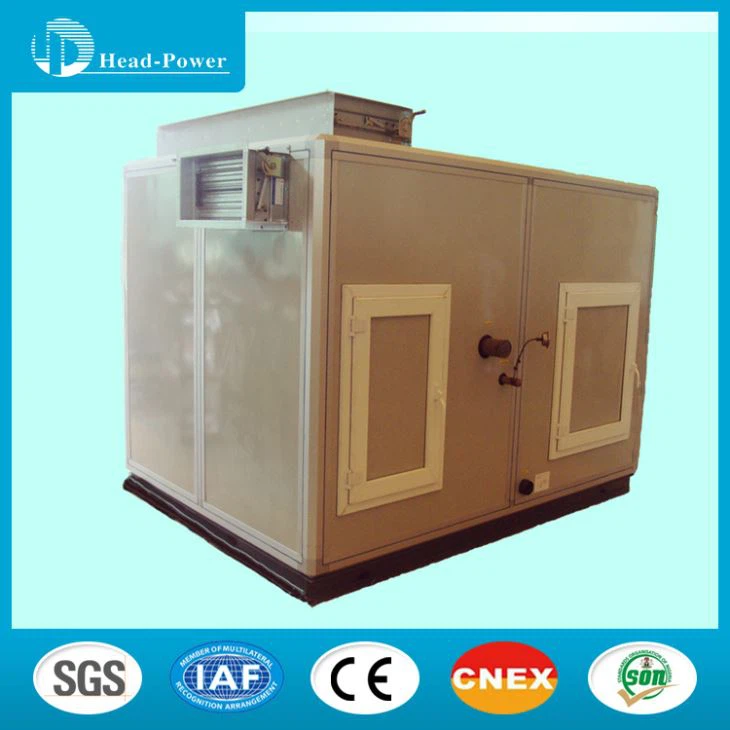

Export Combined Air Conditioning Unit

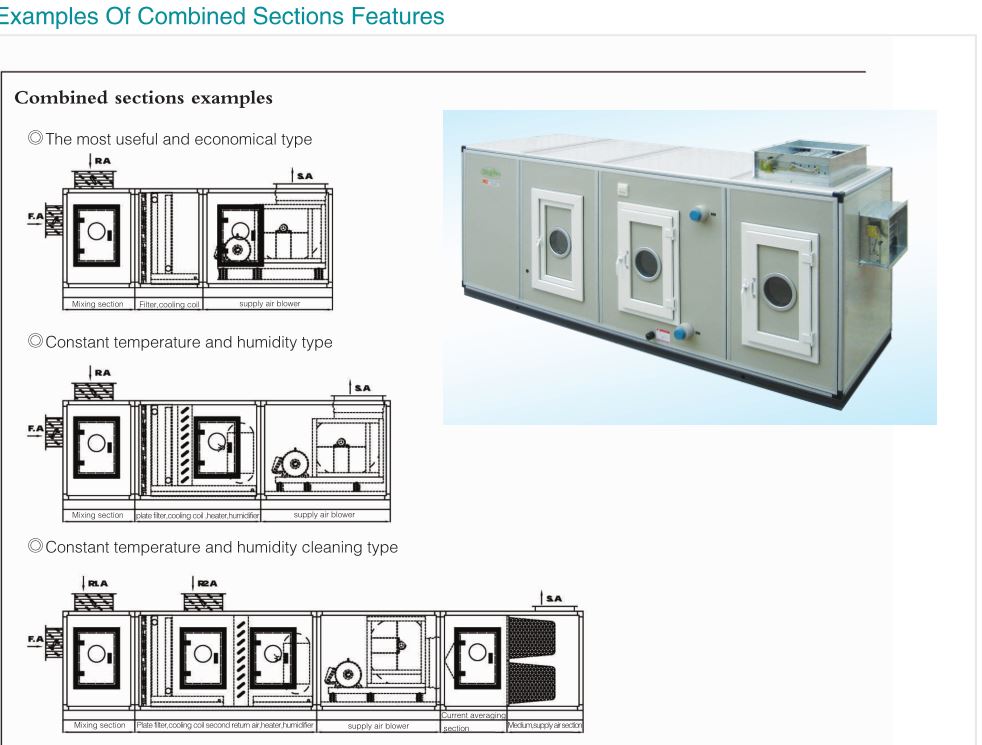

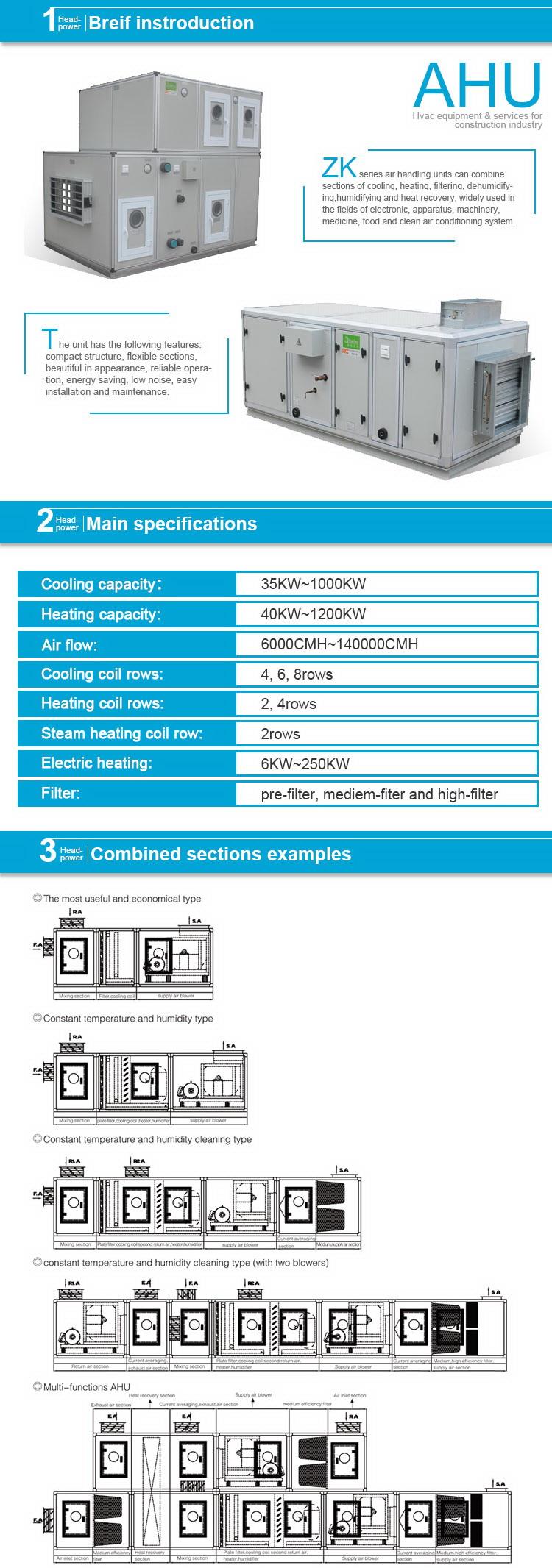

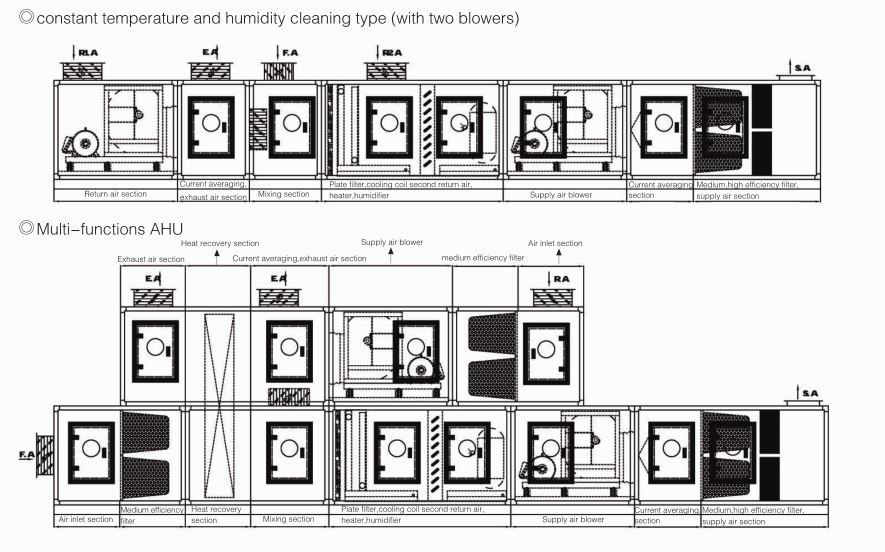

Combined air conditioning box: An air handling unit assembled from various air handling functional sections without a cold heat source. Main functional sections: mixing section, filtration section, table cooling section, heating section, humidifying section, fan section, equalizing section, muffling section, air supply section, etc.

Export Combined Air Conditioning Unit,Combined air conditioning box: An air handling unit assembled from various air handling functional sections without a cold heat source. Main functional sections: mixing section, filtration section, table cooling section, heating section, humidifying section, fan section, equalizing section, muffling section, air supply section, etc.

Customized heat recovery combined air handling unit

Heat Recovery Fresh Air Handling Unit
Model			ZK008EHR Electric heating heat recovery	ZK008RHR Hot water coil heating heat recovery
Quantity		Unit	10	10
Mounted type			Horizontal type	Horizontal type
Air flow		m³/h	800	800
ESP		Pa	120	120
Heat exchanger		Type	Plate type aluminium core	Plate type aluminium core
Heating section	Heating mothod		30KW (Electrical heating)	Hot water coil ,Material : Hydrophilic membrane copper tubes with alumininum fins
	Rows		/	6
	Supply air temp	degree	110 degree	Hot water inlet/outlet temperature 80 degree /70 degree
	Hot water flow	m³/h	/	3
Power supply			Electrical heating 30KW 480V/3PH/60HZ	400V/3PH/50HZ
Fanmotor	Fan type		Famous brand of EC fan,CE certificate
	Fan voltage		230V/1PH/60HZ	220V/1PH/50HZ
	Motor power	W	270	270
Air filter			Bag type filter ,USA Mayair brand with UL certificate

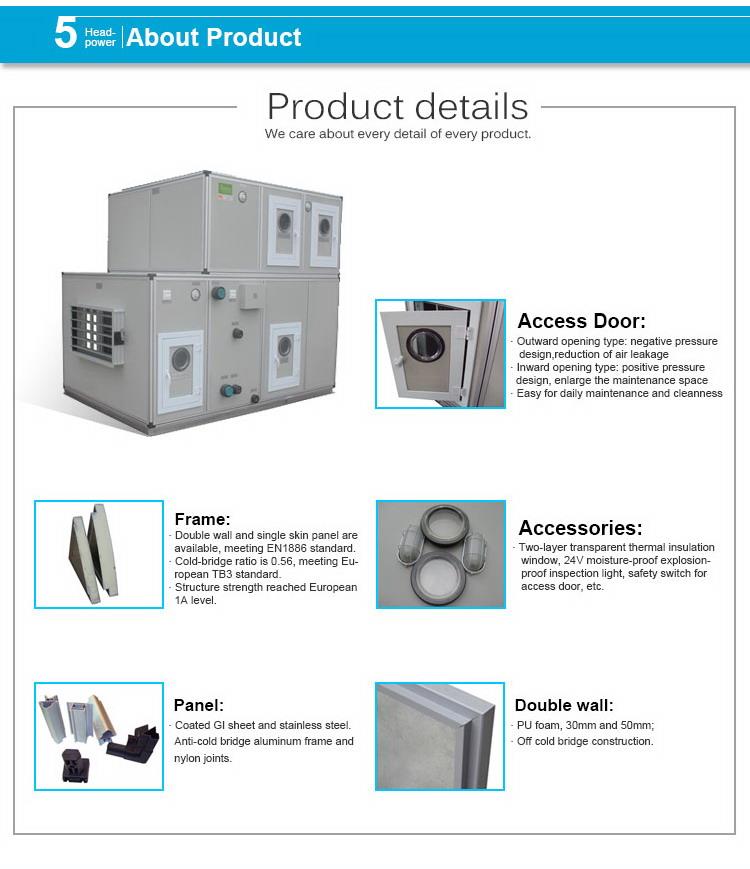

Structures			Aluminum alloy handmanual dampers for fresh air,exhaust air ;Galvanized steel panel sheet , with polyurethane insulation 30mm PU foam ;Heat recovery aluminum core; overhaul the visual windows ; 1 sets bag filters with goods.
Size	LWH	mm	26005501100	26005501100
Weight		kg	280	330
NOTE:	Unit without controller,electrical box and electrical water valve.
